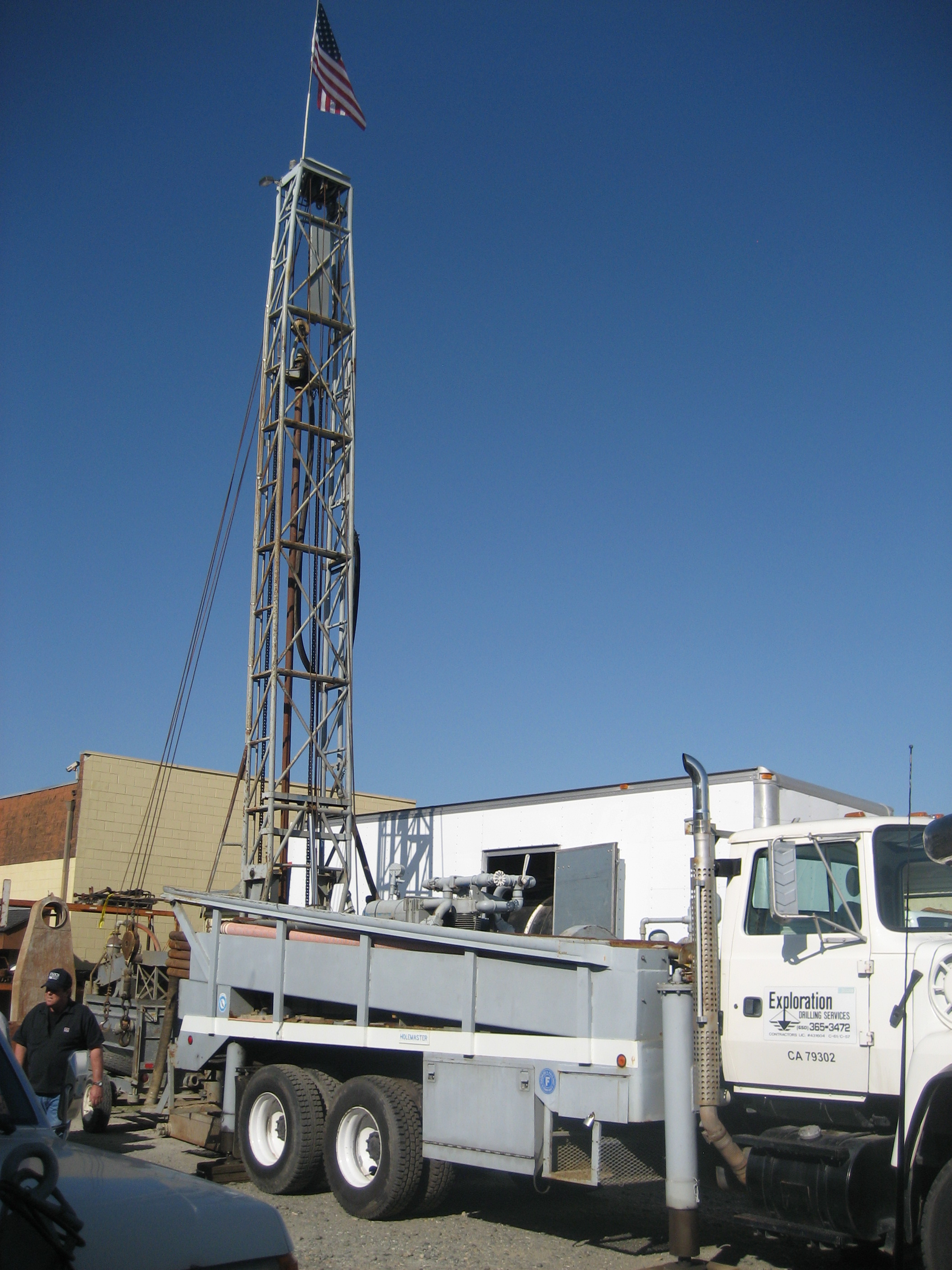

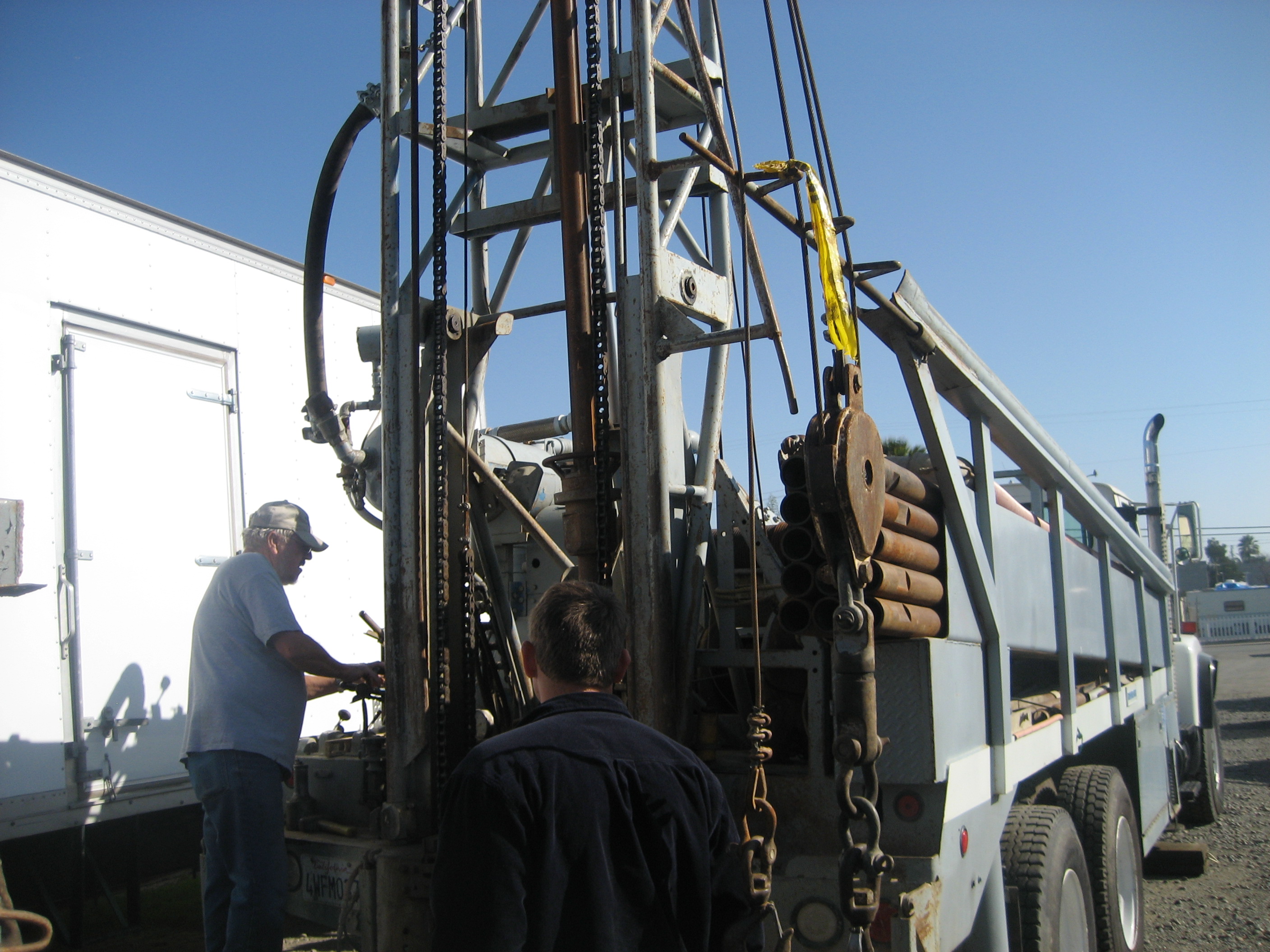

Drill Rig:
Used 1974 Failing, Model CF-15, drill rig, S/N 903032, mounted on a very clean
1993 Ford Model L-8000 Tandem rear axle truck, powered by 8.3 Liter Cummins Diesel engine.
Note* This is classified as a 1500 foot rig, with 2-3/8" pipe.
*Air Clutches
on Draw-works,
* Double-Drum draw-works,
* Sand-line winch,
* Rig is powered
via PTO by the truck engine
* Deck mounted LeRoi 50 SDS air compressor,
* 5" x 6-1/4" Piston mud pump.
* 20 foot pipe trough.
*Side mounted tool boxes.
* 4 hydraulic outriggers,
* New pull-down chains, sprockets
and bearings.
*
Tow hitch,
*
Piping set-up for auxilliary mud pump.
Water Truck:
used
1995 Ford Aeromax with Cat 24406E Diesel Engine, 24 foot deck with pipe racks, both sides, and 1500 gallon stainless steel
tank in center, aluminum side boxes, pressure tank, tow hitch.

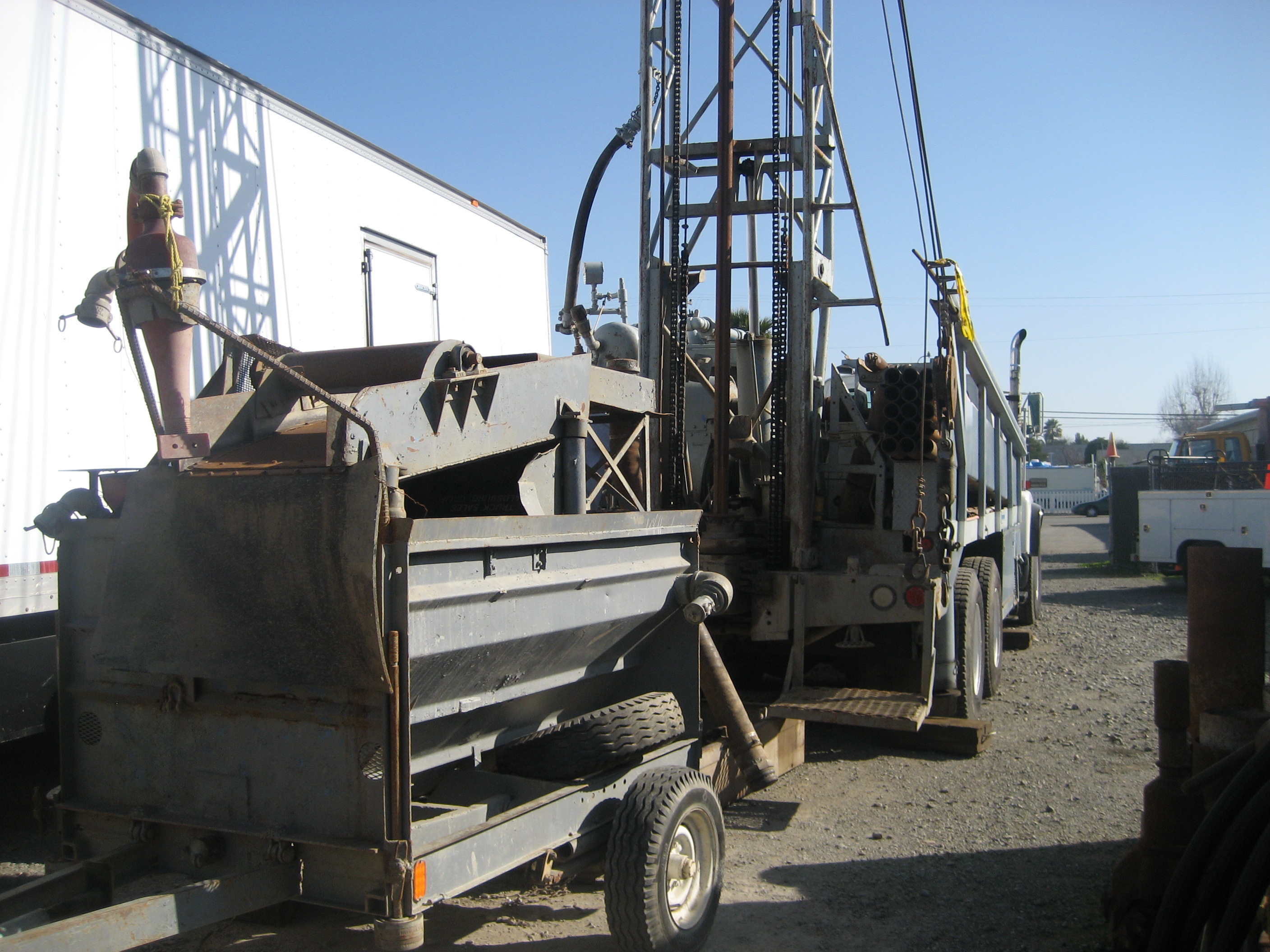

Mud Shaker System:
Used shop-made, with mechanical shaker, pick-up pump, single screen, desander cone, mounted on
single axle frame, powered by Honda engine.
Note** The Rig, Water Truck, and
Mud system above has a deposit on it, and is probably sold.
Also available:
Utility Truck:
Used 2003 Ford Model F-350 with 5.4 Liter V-8, automatic, AC, utility body with heavy pipe
rack,
acelylene and oxygen setup, Lincoln 225 amp welder/generator, 53 gal. fuel tank, w/
electric pump,
set up to tow, or be towed.
Dump Truck:
Used 1978 Chevy, 1-Ton, with 350 Gas V-8, 4-speed, setup to tow or be towed, recent paint.
Forklift:
Used 1986 AC, 8,000 lb. capacity, 16 ft height, side shift, propane.

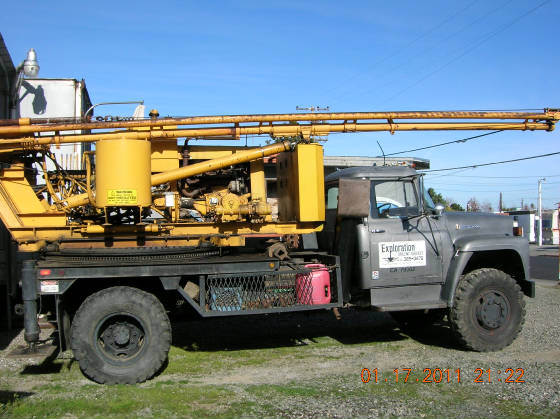

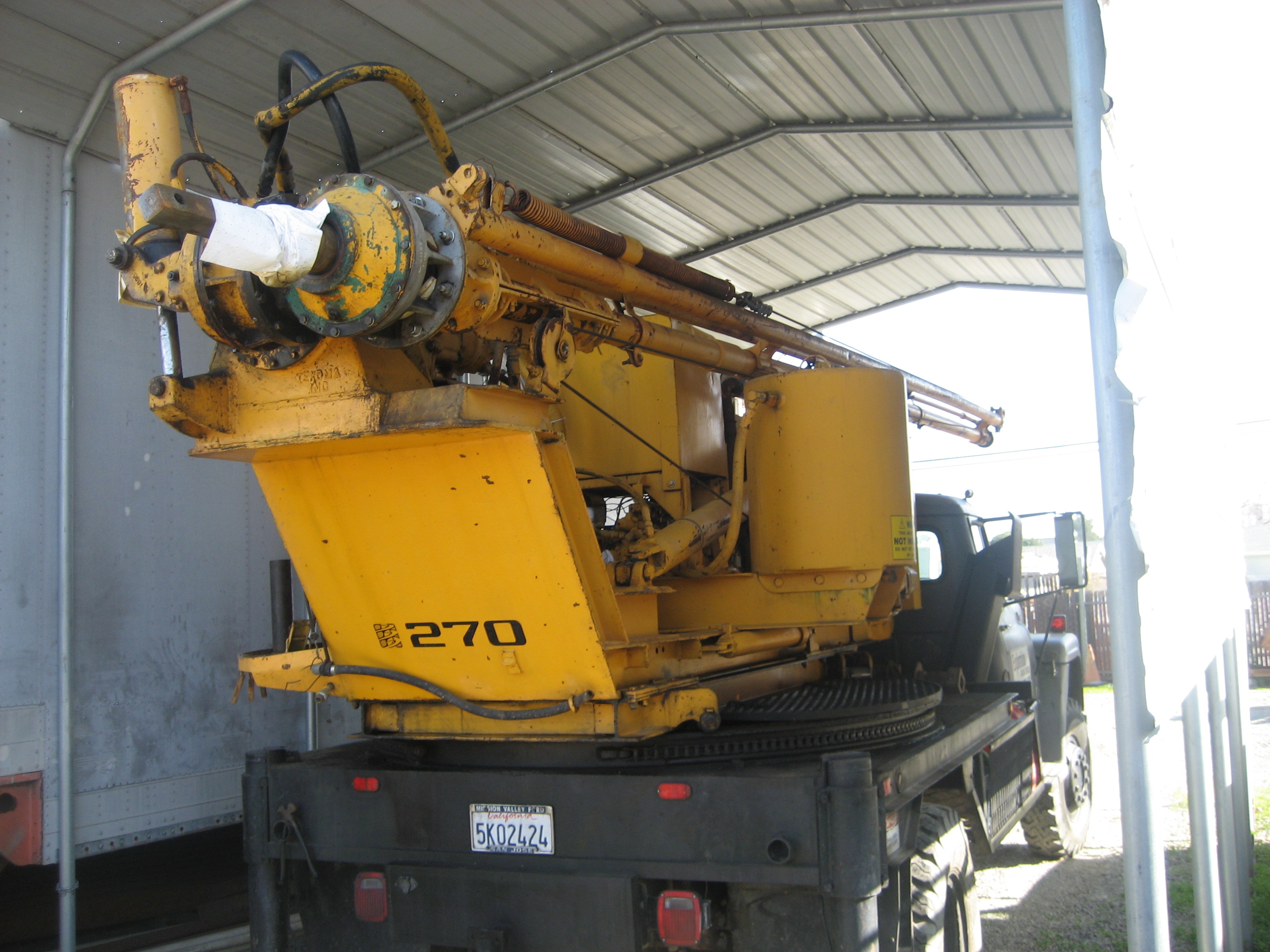

Foundation
Auger Drilling Machine:
Used 1975 Texoma,
mounted
on 1975 IHC Model 1700, 6x6 truck, with 392 V-8, with Allison automatic transmission, 4-outriggers, upgrade to rig frame,
and hydrostatic drive. Powered by 300 Ford Industrial Gas engine. Augers from 12" thru 48"?, all 2-1/2" boxes,
winch for setting poles or casing, water tank, pump, hitch.
Accessories:
Used, Christensen, 94 MM wireline system, and 800 feet of
94 MM drill pipe, assorted bits, inner barrels, quad latches, etc.
Used, Drill pipe, 750 feet
of 2-3/8 IF, x 3-1/2" OD flush joint, x 20 foot, with break-out flats, good condition.
Used misc bits, subs, fishing tools, handling tools, etc.
Used steam cleaner, generator, trash pumps, hoses,
etc.
Used 400 ft of 2"
galvanized pipe for grouting.
Used
various inflatable packers 2" thru 16".
Used various submersible pumps, used.
Used core extruders.
Used
safety hammers, 140# and 300#.
Used
jars, samplers, etc.
Used
air operated Wilden diaphragm pumps.
Used (but like new) Laval R-Cam 1000 downhole video system.
Much, much, more.
