Large Scale Sonic Technology Equipment For Sale

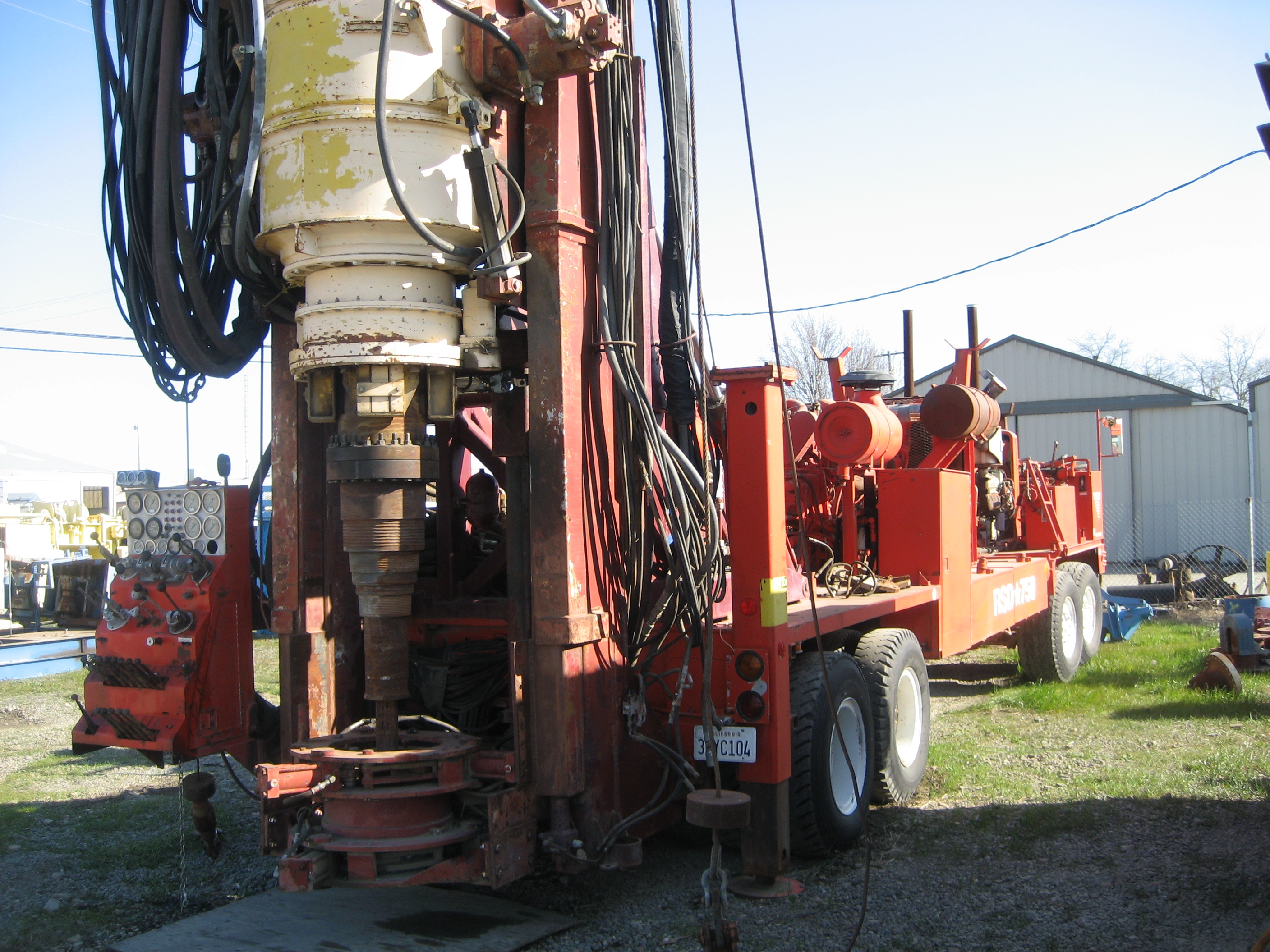

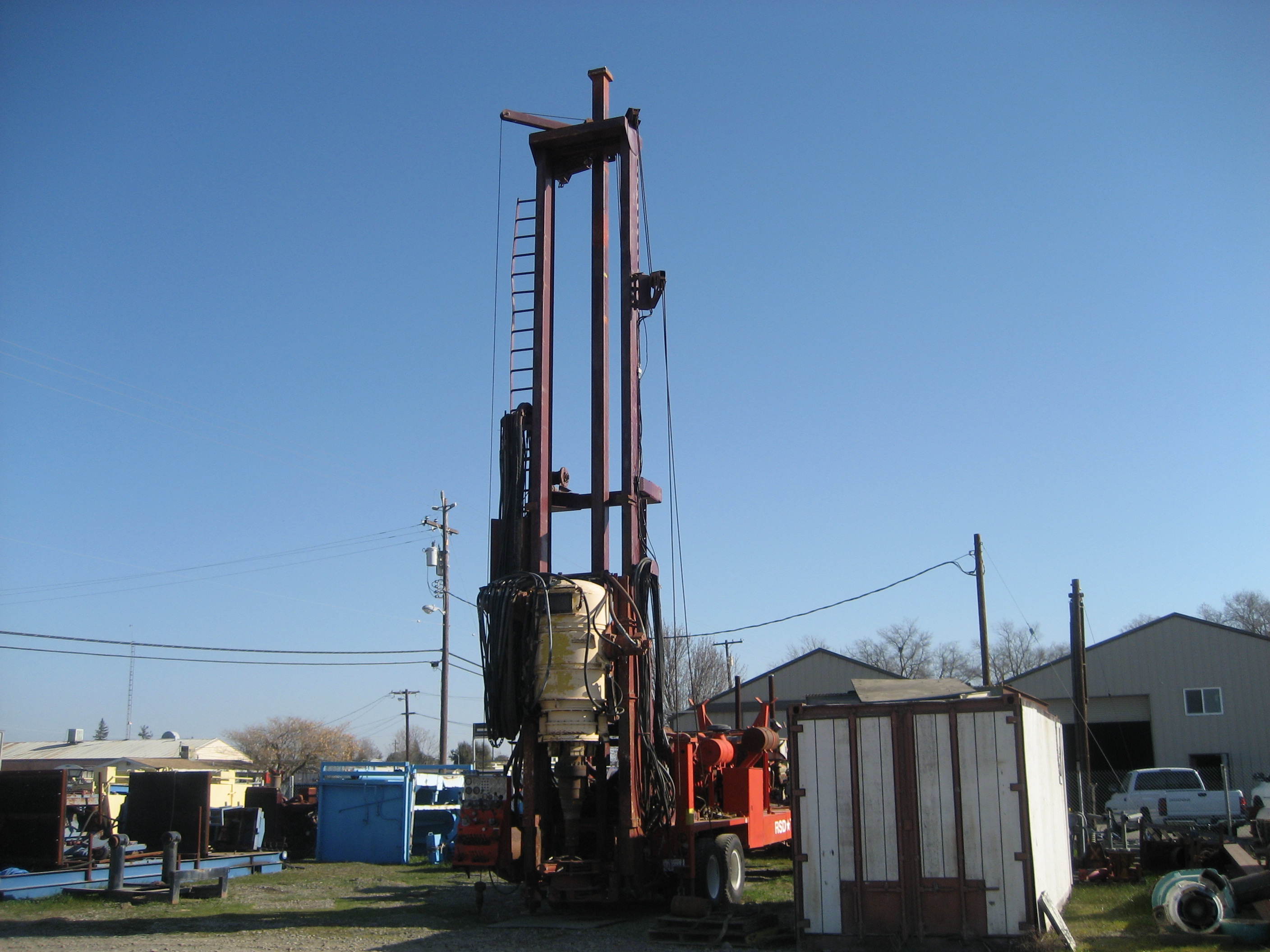

We are marketing a used RSD*750 Sonic Drill Rig, mounted on a 4 axle Crane Carrier Corporation truck, Th eunit accommodates
a BRD*1000 sonic head for larger diameter workor the prototype RSD* 1000 sonichead. It has 750 HP power package/engine mounted
on the deck to run the occilator and a 325 HP power package / engine under the hood to power th ecarroer and operate all other
drilling functions. It is designed after the "Dual Rotary Barber" type of rig and can be easily adapted to use a high torque
Barber table that will also assist in advancing outer casing in the drilling process. This rig is designed with a sliding
angle mast to perform angle drilling work up to 45 degrees and has an automated tooling breakout system for pipe sizes of 4.5"
to 16" diameter. Please see more detailed specifications below.
b) BRD-1000 Sonic Drill Head with upgraded case, Hawker Sidley oscillator system, special designed
rotation system with 10,000 ft.pounds torque, capable of water injection through the rotation unit, two Sundstrand Model 26
Fixed Displacement Hydraulic power motors.
c) BRD-1000 Sonic Pile Driver with Frame, two 6V-53 Diesel Engines, Controller, Cable, Clamps.
d) BRD-1000 Sonic Pile Driver with Sundstrand 27 Hydraulic Motor and frame.
e) BRD-1000 Sonic Pile Driver with frame for hydraulic operation.
f) BRD-1000 Sonic Pile Driver wityh frame for hydraulic opperation.
g) BRD-1000 Sonic Pile Driver, disassembled in parts.
h) RSD*1000 Prototype Sonic Drill Head / Pile Driver, 100-1000 Horsepower capability, 60,000 load capacity,
10,000 ft. lb. rotation torque capacity, 250,000 force pound capacity, 4" hollow spindle, roughly three feet square.
i) Allis Chalmers AC25000 450 HP Hydraulic Power Unit with Sundstrand 27 Variable Displacement Hydraulic
Pump capable of 160 GPM at 5000 PSI, high pressure hoses, controls, to run BRD-1000 Pile Driver.
j) Sonic parts Inventory for BRD-1000 Sonic Pile Drivers. Thi sconsists of gear housings, gears,
bearings, rollers, crank shafts, drive shafts, connecting bolts, air springs, oscillator housing, lubrication components,
bushings, cast housing pieces, center colums, flange adapters bell ends, and hoses.
Engineered Drawings for Manufacturingf Sonic Equipment
A. Hawker Siddley Engineering
1. RDU 400 Sonic Pile Driver
2. Rotation Drive System for RDU 400 Sonic Pile Drivers
3. 12-3/4" Sonic Drill Pipe System.
4. 60 Ton Vibration Isolator System
B. MYAD TECHNICAL (D>R> DANCE) ENGINEERING
1. RSD*1000 Sonic Drill Head / Pile Driver
2. 50 HP Sonic Drill Head Prototype
3. 6-Jaw prototype Breakout Assembly (4" to 6" )
4. 11-3/4" Sonic Heavy wall casing advance System
5. Water injection swivel for BRD-1000 Sonic Pile Driver
6. High Torque Rotation System for BRD-1000 Sonic Pile Driver
7. Barber Style Sonic Drill Rig Design (Rig 109)
C. Bodine / Sonico Engineering
1. BRD-1000 Sonic Pile Driver
2. Pile Driver Pipe Clamp System for Sonic Pile Driving
RSD*750 Drill Rig Specifications
Carrier: 4 Axle Crane Carrier Corp.
Details to follow.
Rig Structure: Base rig built by Pacific Welding And fabrication in Bakersfield, VCA, who also built
Hopper and Ideco Oilfield workover and drilling rigs. More details to follow.
Engines: More details to follow.
Hoisting Capacity and Other Detail to follow when I get more time to add the details.
Please call me anytime to discuss this equipment.
Thanks,
Jon
