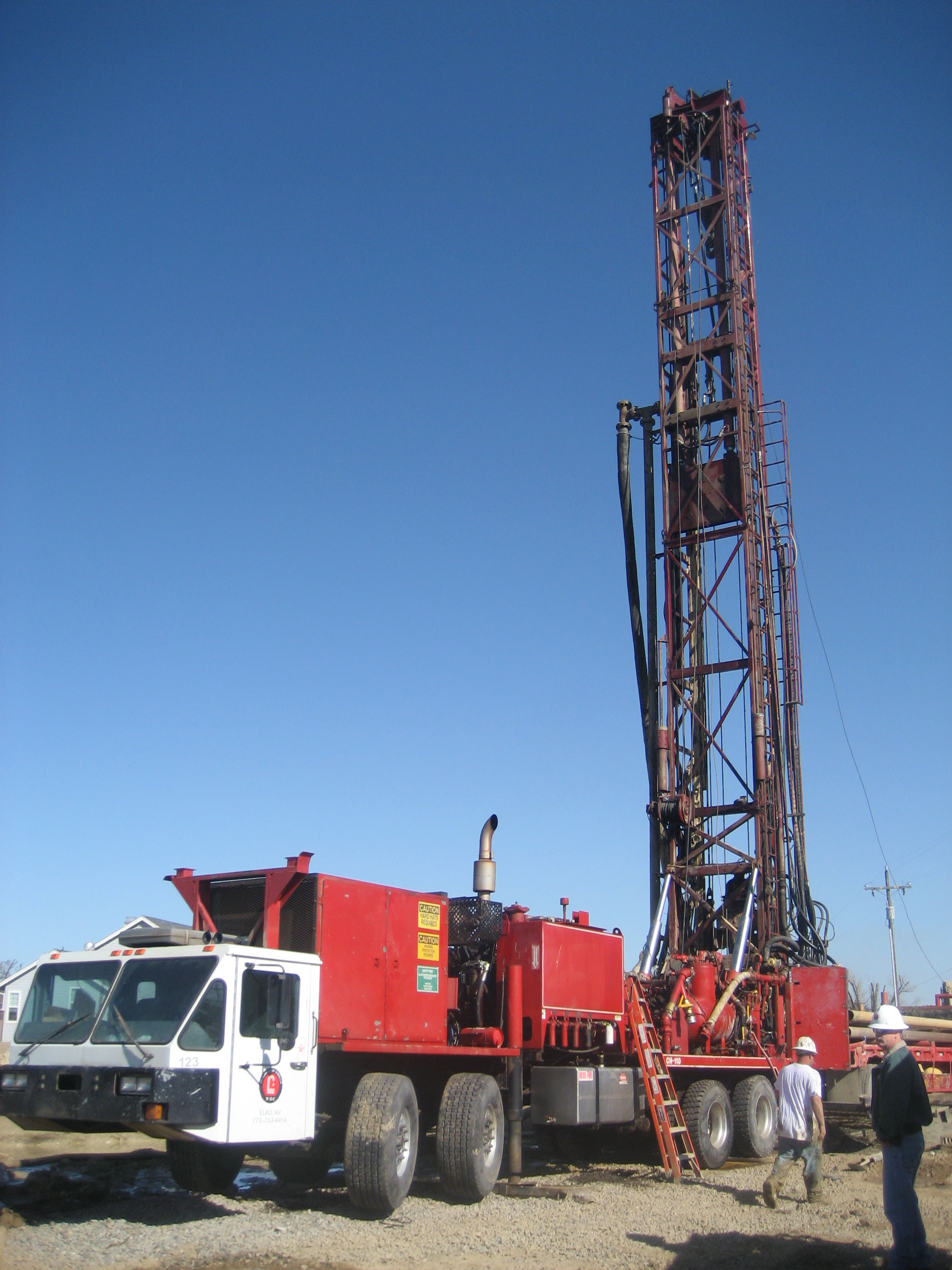

Used 2004 GEFCo Speedstar Model SS-110K-CH, Multi-purpose Top-Head
Drive Drilling Rig.

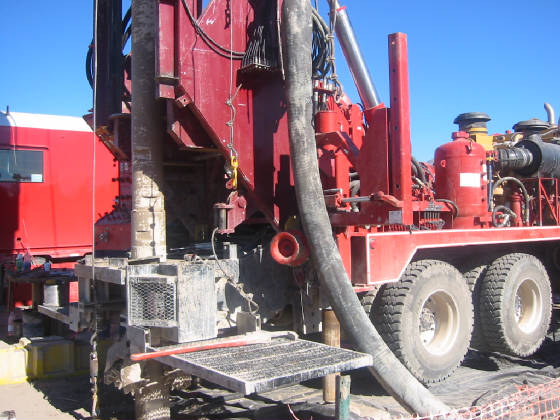

Mounted on 4-Axle oilfield type carrier with two front steering axles and two rear driving axles.
The truck and the rig hydraulic system is powered by a Cat Model
C-15 525 HP Diesel engine.
The deck mounted
1150 CFM x 350 PSI compressor is powered by a deck mounted Cat Model C-15 525 HP industries diesel engine.
Rig has 110,000 pound top-head
pullback, and 110,000 pound main hoist capacity.
Rig has 48 ft.
of working space above the breakout table.
1150 CFM x 350 PSI
Deck mounted air compressor.
Casing Hammer package, (See below)
6"

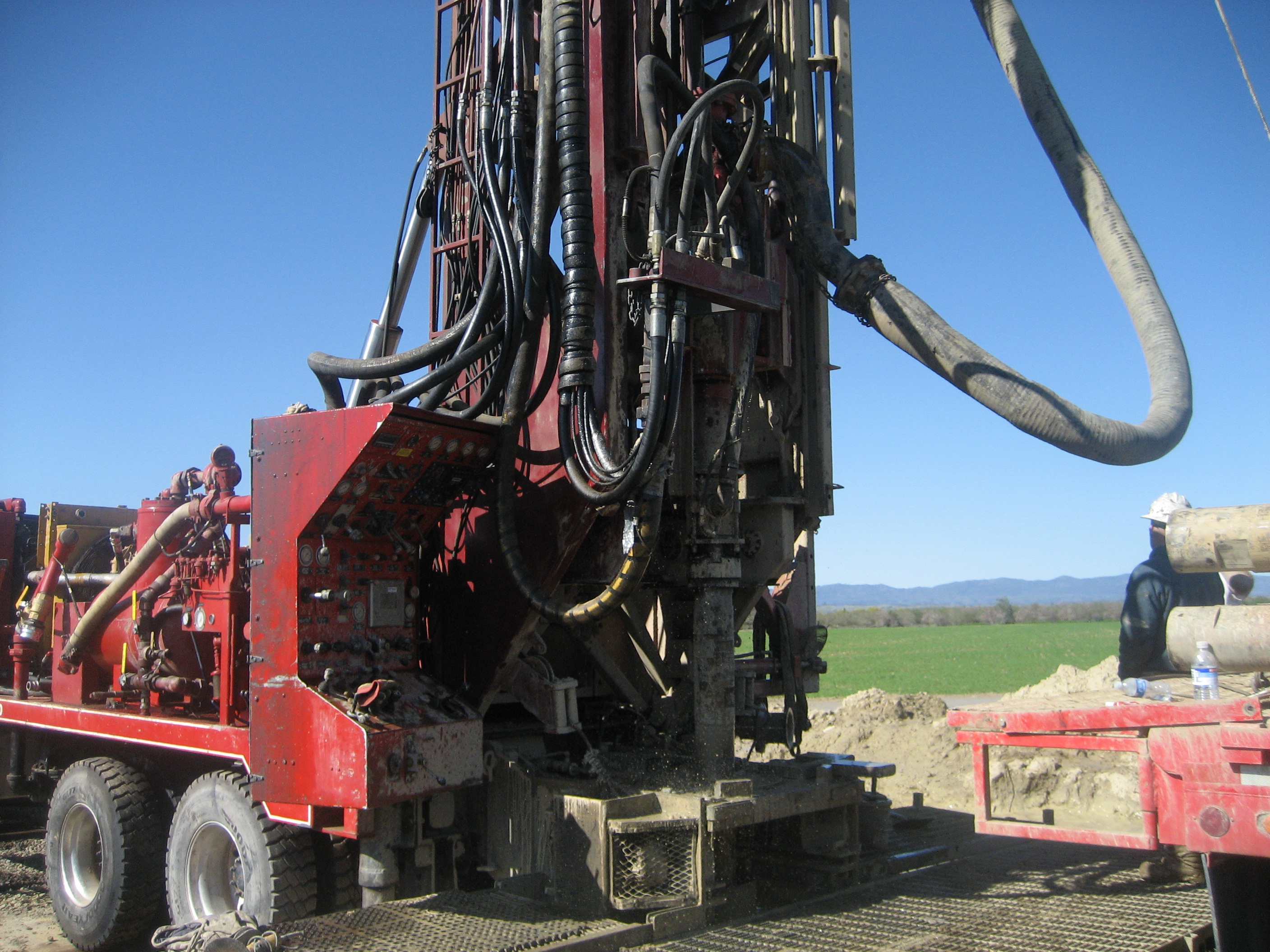

ID Top-head, with infinite controlled speeds of 0-60 RPM with maximum torque of 15,000 ft. lbs., and speed of 0-120 RPM
with maximum torque of 7,500 ft. lbs.
Top-head has 42 ft. of
travel.
Pull-down of 30,000 lbs., and pullback
of 110,000 lbs.
Hoisting
Drum, has 110,000 lbs hoist capacity with 4-part traveling block.

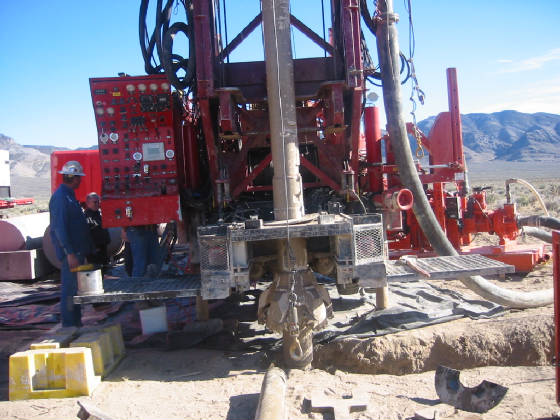

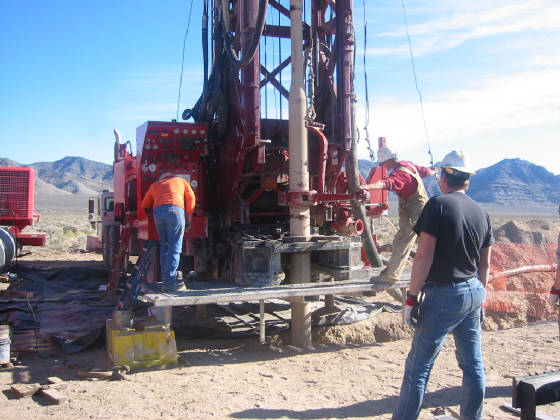

Centralizer
/ Breakout table is detachable from the frame, and has a 32" diameter opening when retracted with all table bushings
removed.
Front table section hinges open for removal of large
tools and the back section retracts hydraulically. Opening is 18" when closed.
Cat 25 GPM water injection pump with foam injector.
Venturi
type oil injector with apx. 25 gallon capacity.
Rig has 4 ea
x 48" hydraucillay powered leveling jacks.
4 x3 Centrifugal
mud pump, hydraulically powered, with up to 320 GPM / 230 PSI.
Rig
is equipped with a large cyclone, for use with dual wall reverse or other reverse type drilling.
Casing Hammer package: Weldco-Beals model 1321 casing driver, for driving 6" through 24"
casing.
This multi-purpose rig
is powerful, and capable of drilling large diameter holes with several drilling methods, including direct air or mud, dual
wall reverse drilling, flooded reverse drilling, and casing hammer drilling.
This is rig works well for oil and gas drilling,
large water well drilling, methane gas / coal gas drilling, horizontal - directional drilling, environmental wells, mineral
exploration, mining de-watering, geothermal well, and special construction holes.
A very powerful rig.
Sold
