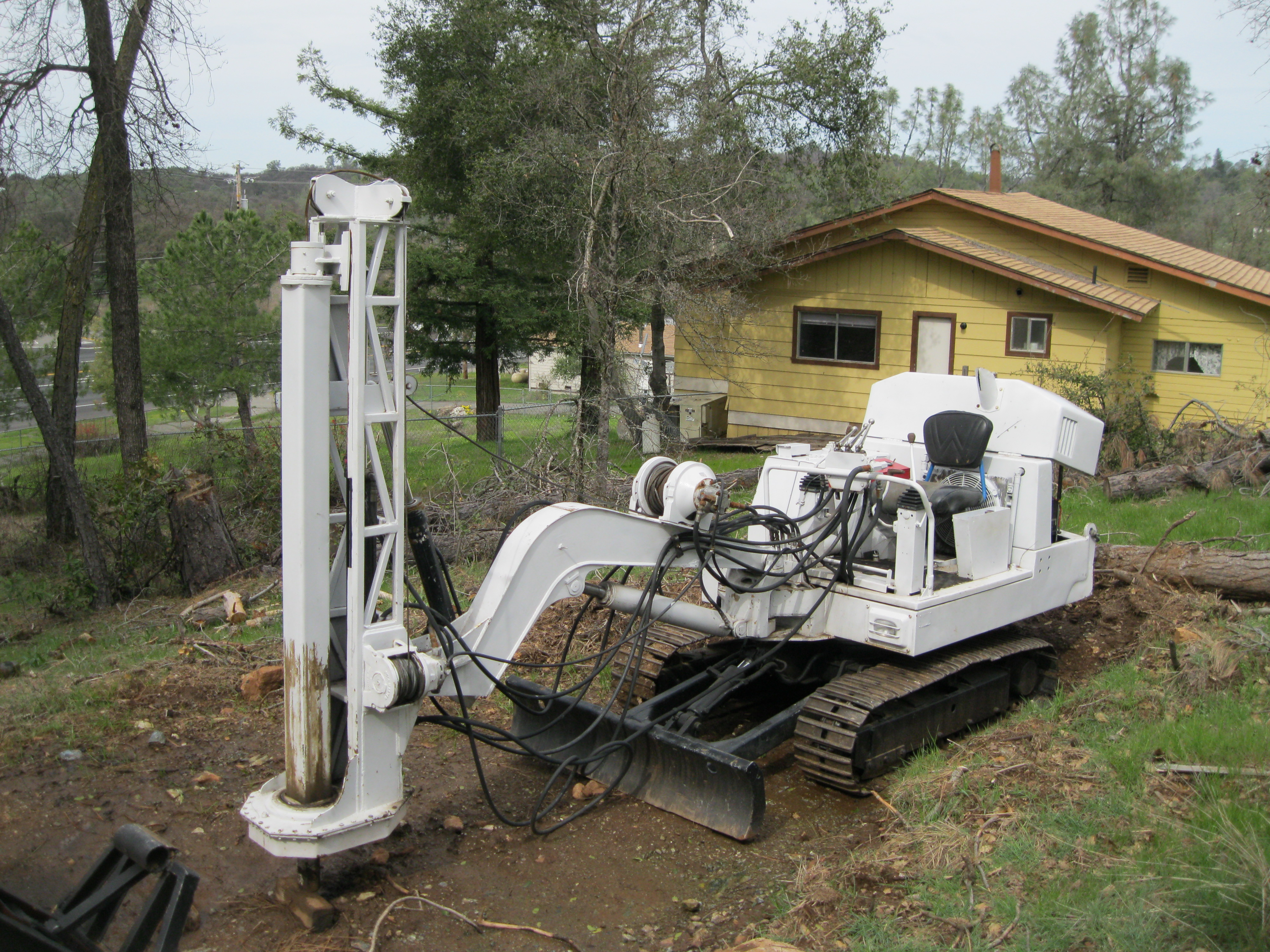

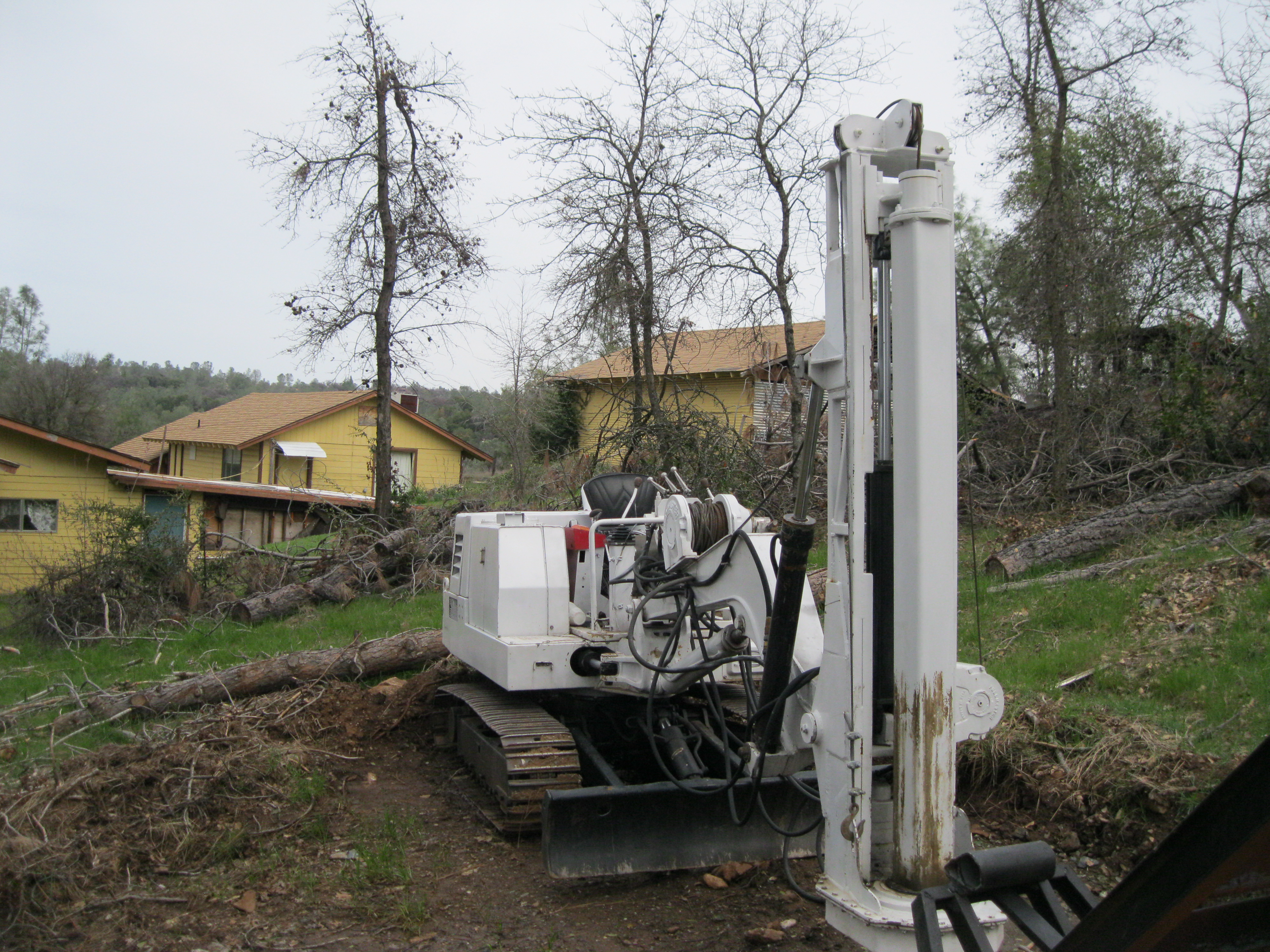

Telescoping Square Kelly up to 30 feet deep!
Telescoping kelly Auger
rig built for low clearance applications, like inside buildings, elevators, basements,
under building roof
overhang, etc..
The high-torque machine turns augers 24" up to 60" in diameter, to ~30 feet deep,
and has four ~7 foot long stages of the kelly that fit inside each other,
and telescope down or up, on command,
with power crowd (pull-down).
This awesome machine is mounted on a DMR brand Mini-Excavator body, and is powered
by the excavator Yanmar Model 301 2-cylinder Diesel engine.
Some augers included.

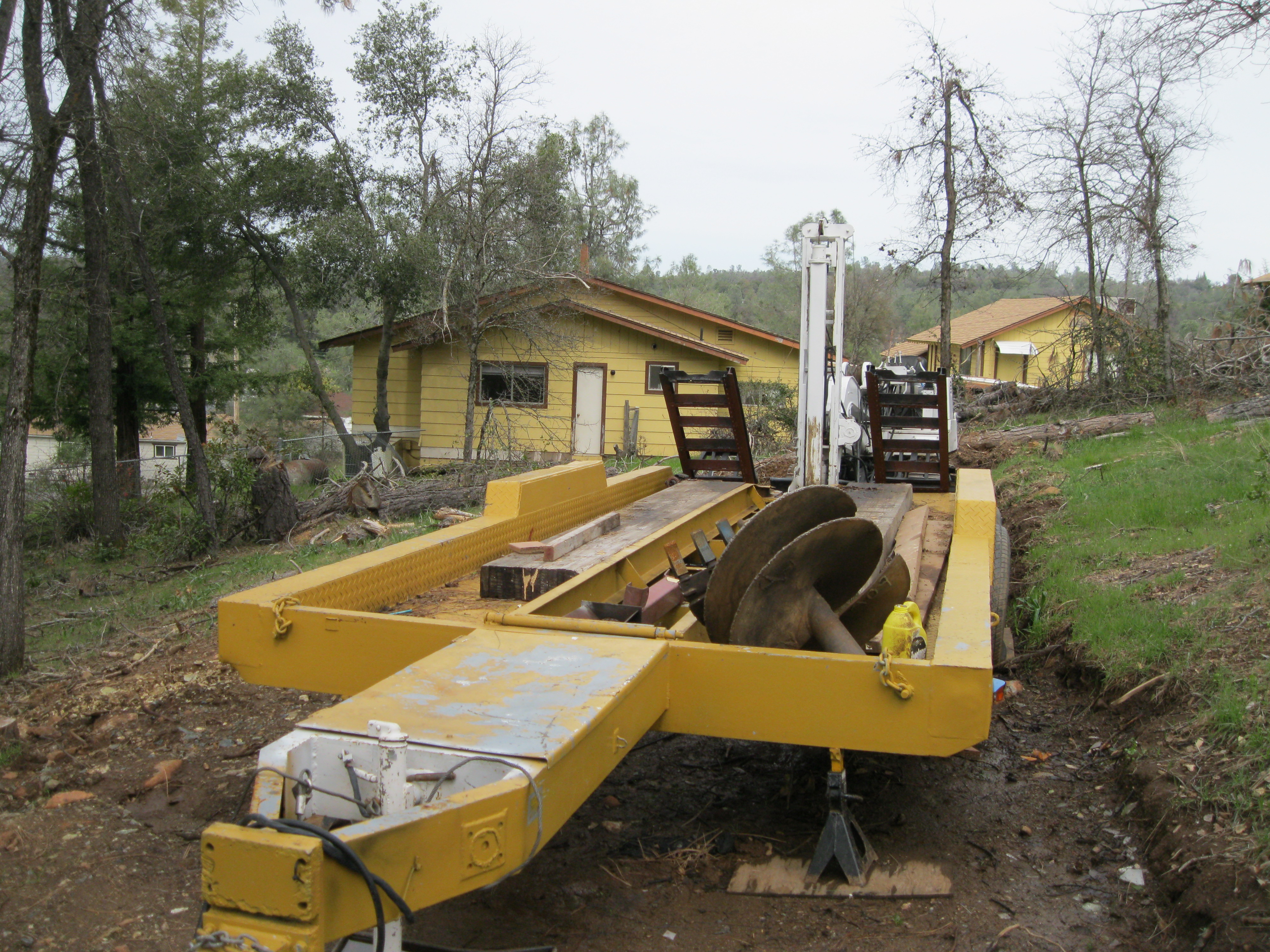

Zieman Trailer available
at extra cost.
Price for Rig and augers: $32,000.00
Also,

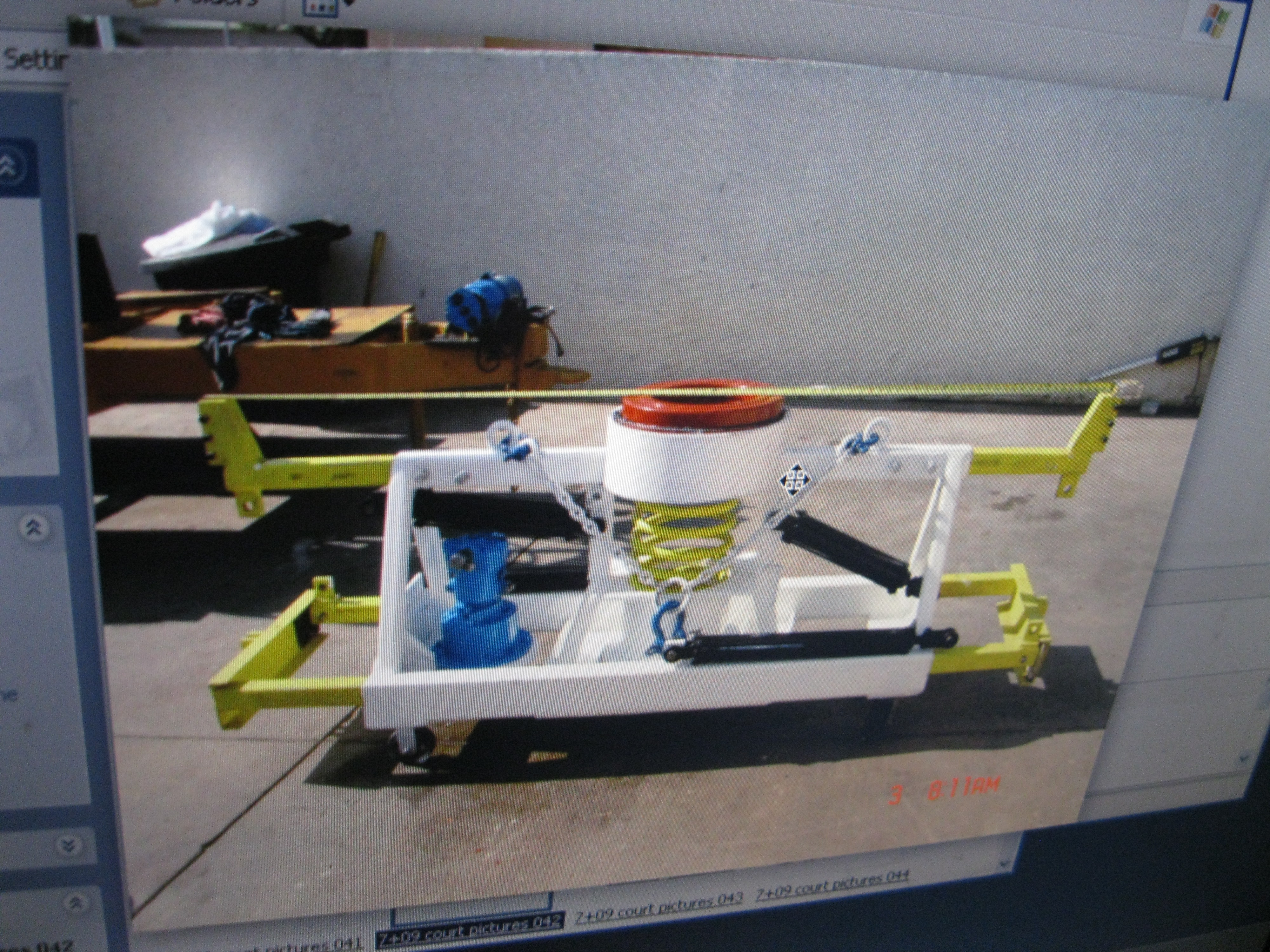

One "Inside the Elevator shaft" drill, for re-drilling of old shafts,
or replacement of leaking elevator hydraulic cylinders, with PVC Liners.
This
is a Custom-Built machine that is carried into the building, assembled inside old the elevator
shaft, and used
to re-bore, lengthen, or modify the old system.
This machine has four stages, attaches to the old elevator
rails, and has it's own power source.
Photos to follow.
Please ask for me for more details if you are
interested.
Jon
